AMProof Data Entry Screen




With AMProof, radial measurement data is entered from field notes for both reference and directional patterns. The reference proof can be either non-directional or directional, making the program useful for either full or partial proofs.

horizontal rule

Graphical Analysis

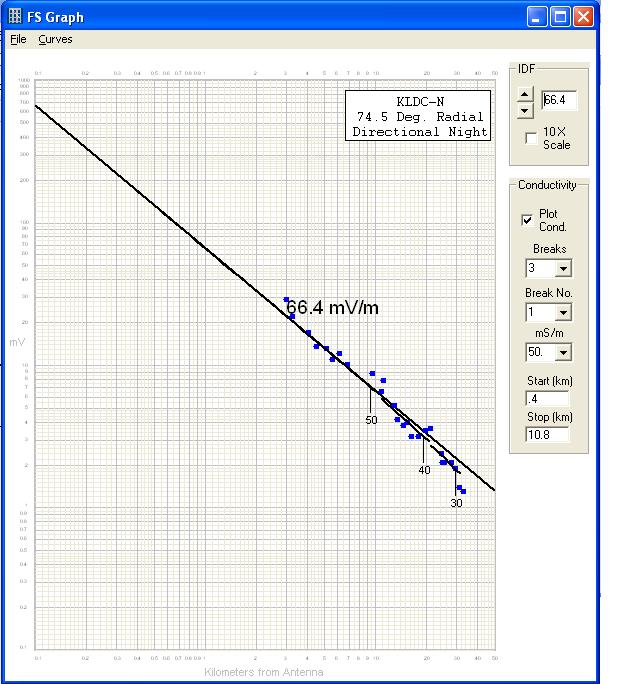

AMProof Measured Pattern Plot

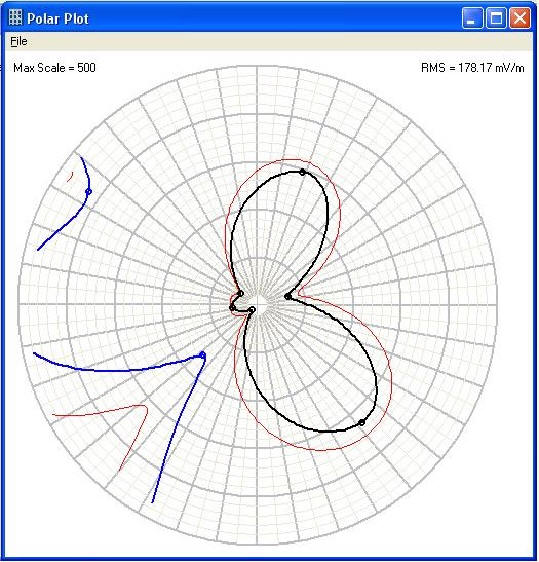

A log-log graph is produced wherein the user can graphically analyze the measurements, adjusting the inverse distance line for best fit. Likewise, conductivity curves can be "tried on" in the GUI environment for best fit. The end result can be printed on the system printer to produce ready-to-file exhibits. When all radial measurements are complete, a polar graph can be produced to show that the measured pattern is within the standard pattern and that the RMS is sufficient.
